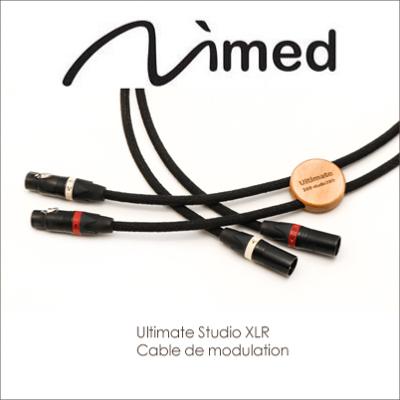

NIMED ULTIMATE STUDIO CABLE MODULATION XLR

Outerinsulation: PVC insulation, fully coated braided cotton thread

Externalwire color: Black natural cotton

Designfeatures: RCA - coaxial design with polyethylene insulator and braided shield

usestechnology, developed by Nimed, which does not allow the appearance ofparasitic resonances in the soldering places

XLR -4-conductor construction with braided shielded pairs for plus and minus channels,overall shield

Conductorand material XLR - 4 stranded conductors of oxygen-free copper with a crosssection of 0.34 mm ²

Shield andmaterial: XLR - the shield of each conductive pair, overall shield of foil(100% coverage), a filler of teflon and cotton thread

Connectors- earth contact spring-loaded at the connection enables silentdisconnection/connection of the cable

XLRconnector, Neutrik, Liechtenstein

Connectorsmaterial - copper-zinc alloy contacts and housing, contact group 5 µm Au (gold)coating over 5 µm Ni (nikel)

Housingzinc alloy, Contacts- bronze(female), copper-zinc alloy(male)

Contactgroup coverage 0.2 µm Au (gold) coating over 2 µm Ni (nikel)
